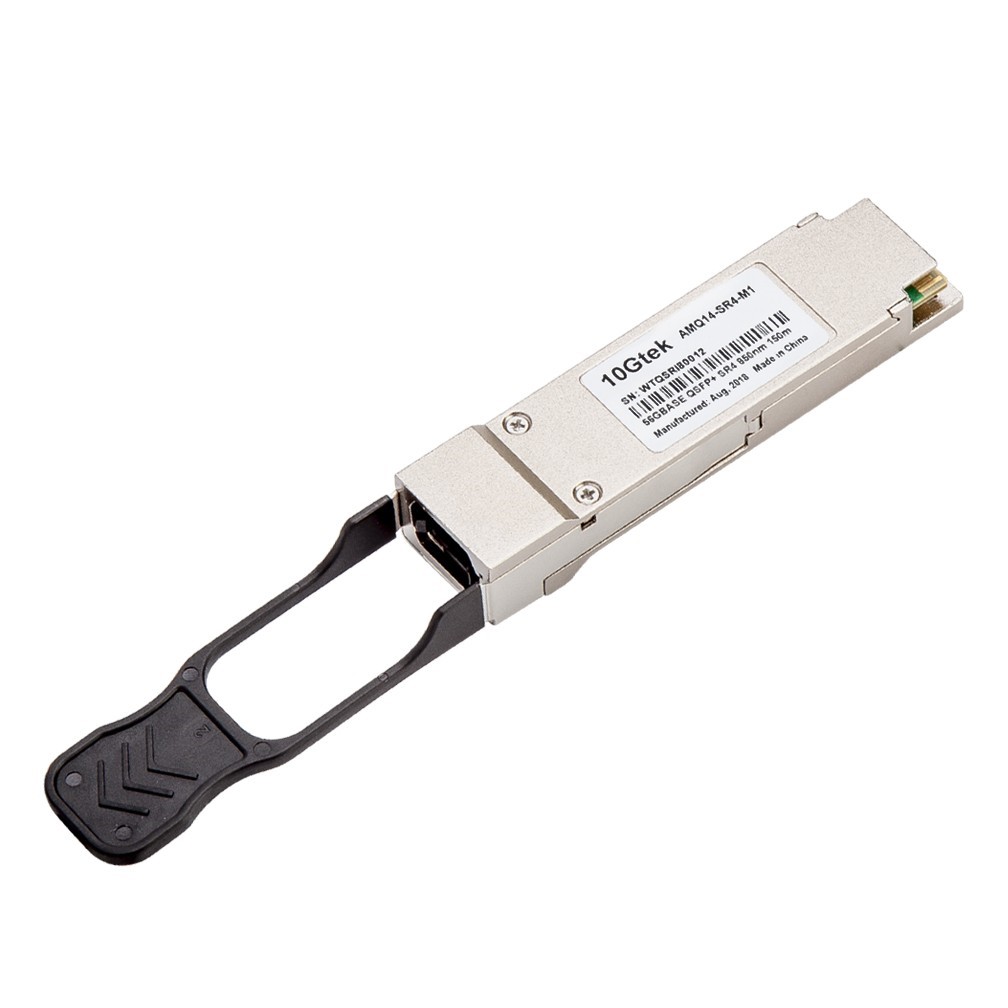

10Gtek’s AMQ14-SR4-M1 Modules are designed for use in Ethernet, SAS, and Infiniband links over multimode fiber.
They are compliant with the QSFP+ MSA and the Ethernet, SAS and InfiniBand architecture specifications. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.
Features:
- 4 channels 850nm VCSEL and PIN
- Electrical interface compliant to SFF-8436
- Support 56Gbps data rate
- Hot Pluggable QSFP form factor
- Single MPO connector receptacle
- Built-in digital diagnostic functions
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- Maximum link length of 100M on OM3 Multimode Fiber (MMF)and 150M on OM4 MMF
- Maximum power consumption<1.5W
Applications:
- Infiniband 4xFDR
- Infiniband 4xFDR10
- Infiniband 4xQDR
- SAS 2.1/3.0
- IEEE 40GBase-SR4
More Information
| CPN | AMQ14-SR4-M1 | Custom SKU | AMQ14-SR4-M1 |
|---|---|---|---|
| Model | AMQ14-SR4-M1 | Compatible | Alcatel-lucent |
| MSA1 | 56GBase-SR4 | Rate | 56G |
| Reach | 100m@OM3 | Reach1 | 150m@OM4 |
| Wavelength | 850nm | Interface | MPO/MTP |
| Fiber Cable | MMF | Compatible | 10Gtek offer Compatible Service |
| Temp. | 0 to 70°C (32 to 158°F) | Form Type | QSFP+ FDR |
| DOM Support | Yes | Max Data Rate | 56Gbps |
| Brand | 10Gtek |
