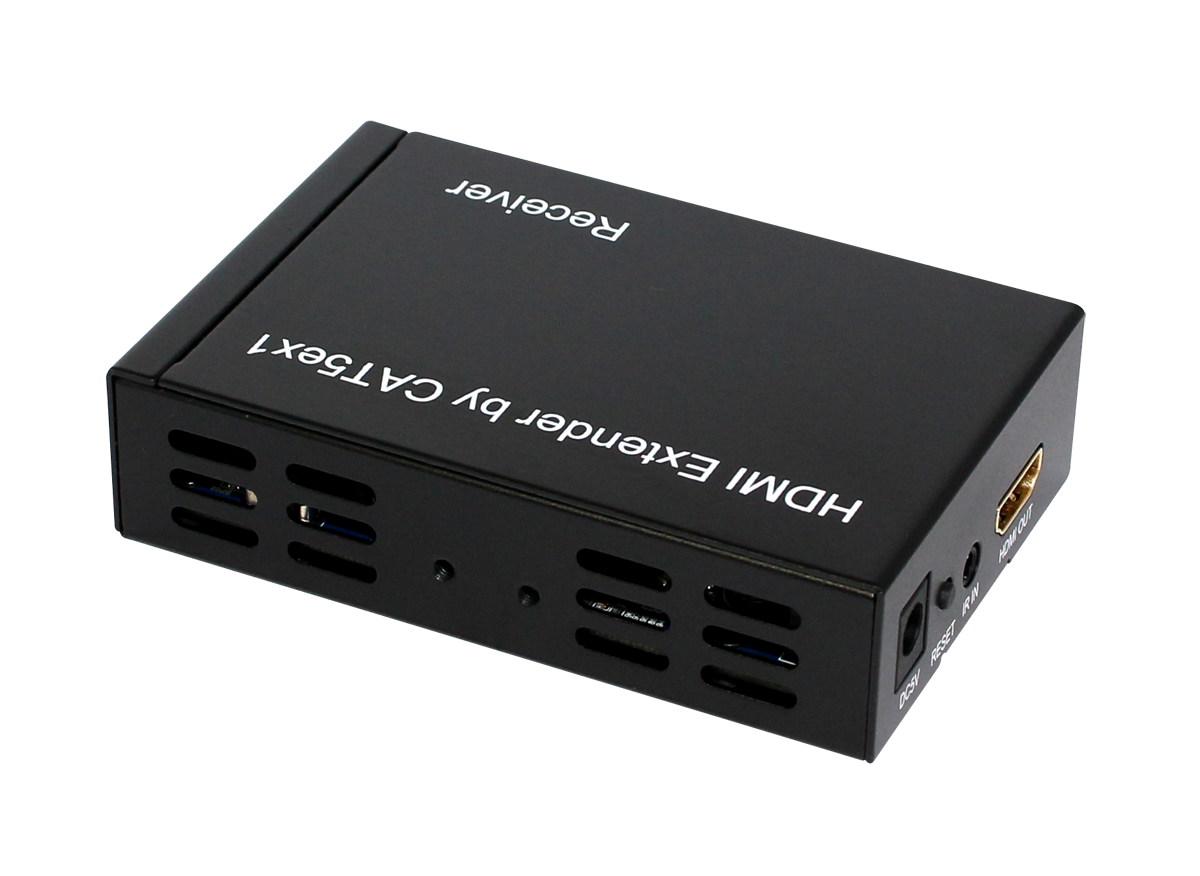

    HDMI to RJ45 (Single) Extender, 100-Meter
    Loading...

    HDMI to RJ45 (Single) Extender, 100-Meter

    #5123
    SKU:COV-HD100-S
    0 Question(s)
    $79.00
    HDMI to RJ45
    3D support
    Full HD 1080P
    Thank you for purchasing our product. To ensure safety and many years' trouble-free operation of the product, please read the manual carefully before using this product. The pictures and technical parameter involved are only for your reference, As for specific circumstances, please be subject to the actual product. 1.0 INTRODUCTION: The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the Source which is 100 meters outside using the HDMI Extender. 2.0 Features 1. DC 5V power supply. 2. 2.HDMI 1.3, HDCP 1.1 and DVI 1.1 compliant. 3. Support Deep Color up to 12 bits/color. 4. Support IR re-transmitting. 5. Uses one CAT5E/6 cable for data/DDC transmission. 6. Equalizes and recovers incoming TMDS data before retransmitting it in optimal quality regardless of the incoming signal quality. 7. Cable testing showed that with 1080p resolution the HDMI input source can be 10 meters away. 8. When transmitting a signal in 1080p resolution the CAT6 operating distance is 100 meters. 3.0 PACKAGING ACCESSORIES: HDMI Extender Transmitter ------------------------------------------------ 1PCS HDMI Extender Receiver --------------------------------------------------- 1PCS IR Transmitter ------------------------------------------------------------------ 1PCS IR Receiver --------------------------------------------------------------------- 1PCS 5V DC Power Supply adaptor ---------------------------------------------- 2PCS Operation Manual ------------------------------------------------------------- 1PCS 4.0 Specifications: APPLICATION 5.0 CONNECT AND OPERATE: APPLICATION 1. Power:Plug the 5V power supply into the unit and connect the adaptor to AC wall outlet. 2. RESET: Factory reset button. When the Receiver system functions have been changed, Pressing this button for 10seconds can realize factory reset. 3. IR OUT:Remote control signal transmit,connect the IR transmit cable with HDMI Extender Transmitter.The IR transmit cable face to the IR receiver of the Source. 4. HDMI:HDMI Input port. 5. CAT6 OUT: Connect the CAT 5E/6 output of the Transmitter with the CAT 5E/6 input of the HDMI over single CAT6 receiver. 6. LED indicator: When the DC power on, the indicator will be light. APPLICATION 1. Power: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet. 2. RESET: Factory reset button. When the Receiver system functions have been changed, Pressing this Button for 10seconds can realize factory reset. 3. IR IN: Remote control signal Receive,connect the IR receive cable with HDMI Extender Receiver. 4. HDMI Out: HDMI output port. 5. CAT6 IN: Connect the CAT6 in of the receiver with the CAT6 input of the HDMI over single CAT6 transmitter. 6. LED indicator: When the DC power on, the indicator will be light. 6.0 Application Example: APPLICATION APPLICATION

    warranty & Service
