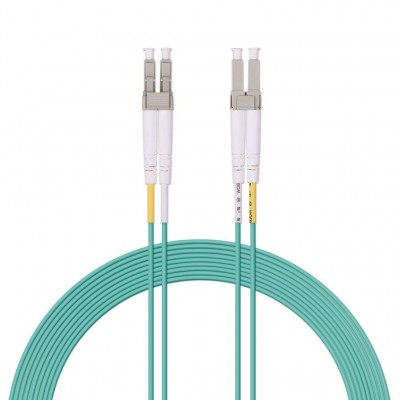

High Quality and Cost-Effective 50/125pm OM3 Multimode Bend Insensitive Fiber Optic Cable
The patch cable can used for connections to telecommunication networks,FTTH(Fiber to the home)zCATV(Cable Television), computer fiber networks and fiber test equipment,etc(Switch, Internet Data Center, Fiber Optic Sensor, Optic Equipment)
Specifications
- Insertion loss(dB): ≤ 0.3
- Return loss(dB): ≥ 30
- Operating wavelength(nm): 850nm, 1300nm
- Exchangeability(dB): ≤ 0.2
- Vbration(dB): ≤ 0.2
- Operating temperature: -40~75
- Polish: PC
- PVC Jacket:LSZH,Strong Resistance to Pull, Durable for indoor use;
- Slim-profile strain relief boots:7.5mm Minimum Bend Diameter that is 4X more flexible than standard 50 micron fiber cables without introducing any macro-bending loss;
- Adjustable yoke un-snaps:easy to plug and play;
- Removable dust caps prevent dirt from reaching the fiber.
More Information
Custom SKU | OM3-LC-LC-D | CPN | OM3-LC-LC-D |
---|---|---|---|
Model | OM3-LC-LC-D | Interface | LC to LC, Duplex |
Spec. Cable Jack | LSZH | Spec. Polish | UPC |
Cable OD | 2.0 mm | Brand | 10Gtek |
Temp. | -25 to 70°C (-13 to 158°F) | Insertion Loss | ≤ 0.3dB |
Return Loss | ≥ 35dB | Wavelength | 850nm |
Exchangeability | ≤ 0.2dB | Vibration | ≤ 0.3dB |
