To link with QSFP+/ QSFP28 transceivers, please choose: MPO cable "Female" Connector, without "PIN". MPO cable "Male" Connector with "PIN" is usually used to link with MPO adapter or MPO Cassette. It is not a stock item, please contact sales rep. for ordering.

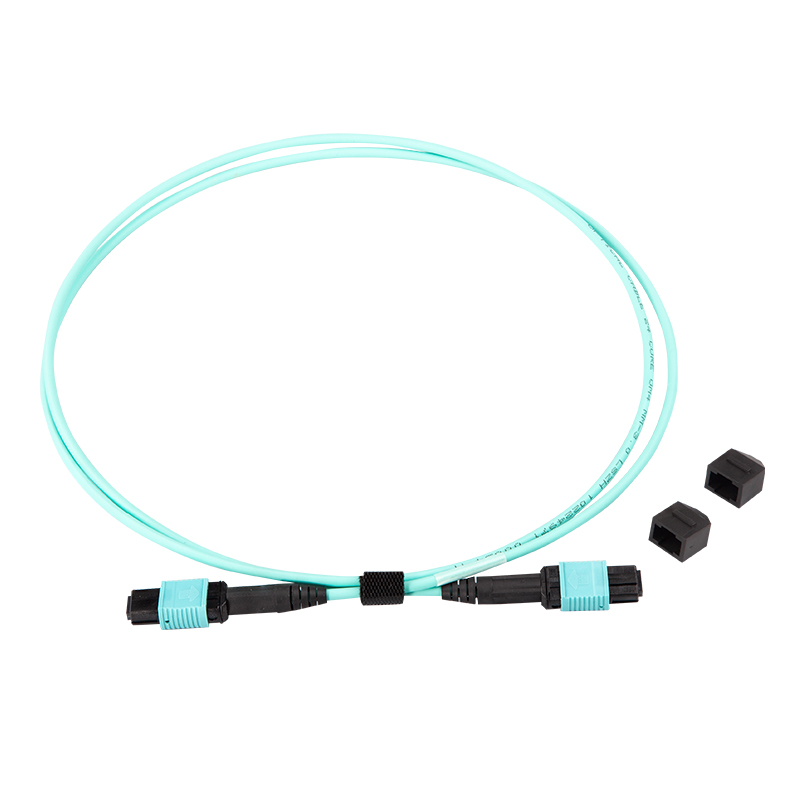

The 12-core MPO connector is applied on both 8 core MPO patch cords and 12 core MPO patch cords.
OM3 and OM4 are MMF, with different fiber modes and different fiber jacket colors.
More Information
| Custom SKU | OM3-MPO-12MPO | CPN | OM3-MPO-12MPO |
|---|---|---|---|
| Model | OM3-MPO-12MPO | Interface | MPO to MPO, 12-core |
| Spec. POLARITY | POLARITY - B | Spec. Cable Jack | LSZH |
| Spec. Polish | UPC | Cable OD | 3.0 mm |
| Brand | 10Gtek | Temp. | -20 to 70°C (-4 to 158°F) |
| Insertion Loss | ≤ 0.7dB | Return Loss | ≥ 25dB |
| Wavelength | 850nm | Exchangeability | ≤ 0.2dB |
| Vibration | ≤ 0.3dB | Connector Type | MPO-MPO |
