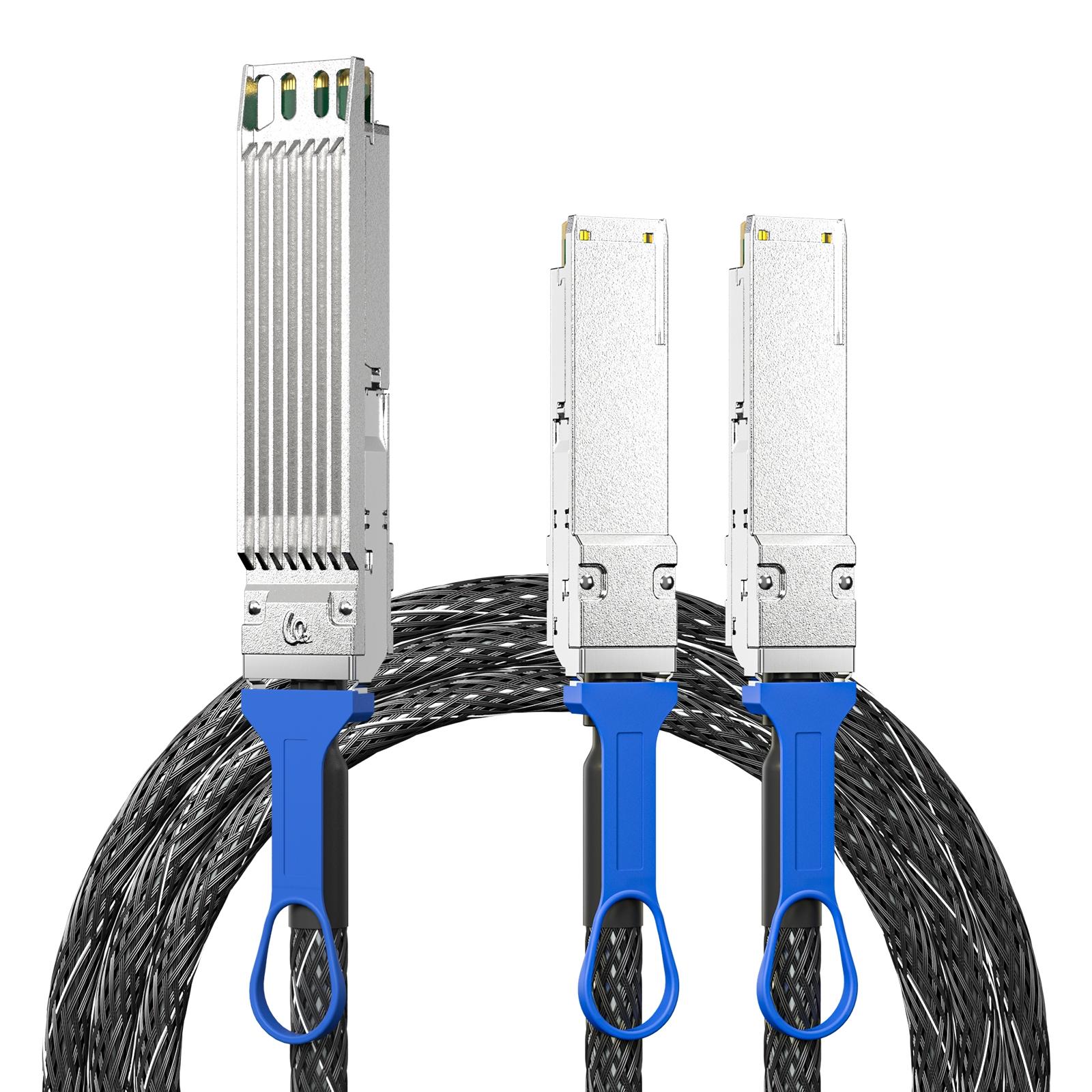

Compatible with 800G OSFP to 2x400G QSFP112 DAC Cable

Product description

In an effort to keep up with the demands of higher performance and increasing amounts of memory bus bandwidth, 10Gtek designers are working to revise, extend and update the solution. 10Gtek’s O2Q-8X50-PxM passive cable assembly can provide new generation performance of OSFP to QSFP56 by higher date transfer rate. At the same time, 10Gtek O2Q-8X50-PxM cable choose dual side drain cable and self-designed PCBA, provide low loss，less skew and better NEXT. 360-degree EMI crimping shielding and Zinc Die-cast shell designing make the product high-performance. And all the designing is based on the industry standard specifications, such as SFF-8679, SFF-8636, OSFP MSA specification rev 1.91 and SFF-8665 MSA specification.

10Gtek’s high-quality solutions provide a power-efficient replacement for active power connectivity such as fiber optic cables for short distances. Optimizing systems to operate with 10Gtek’s O2Q-8X50-PxM passive copper cables significantly reduces power consumption and EMI emission.

Features

● Compliant with OSFP MSA Specification Rev 1.91

● Compliant with SFF-8665 MSA Specification

● SFF‐8679 electrical interface compliant

● SFF‐8636 management interface support

● Compliant with IEEE802.3cd Standard

● Support 25G and 50G (PAM4) electrical data rates/channel

● I2C for EEPROM communication

● Pull to Release latch design

● Excellent EMI/EMC performance 360degree cable shield termination

● Low loss, stronger mechanical features

● Operating Case Temperature: 0℃~70

● Compliant with RoHS

Applications

● Data center & Networking Equipment

● Servers/Storage Devices

● High Performance Computing (HPC)

● Switches/Routers
