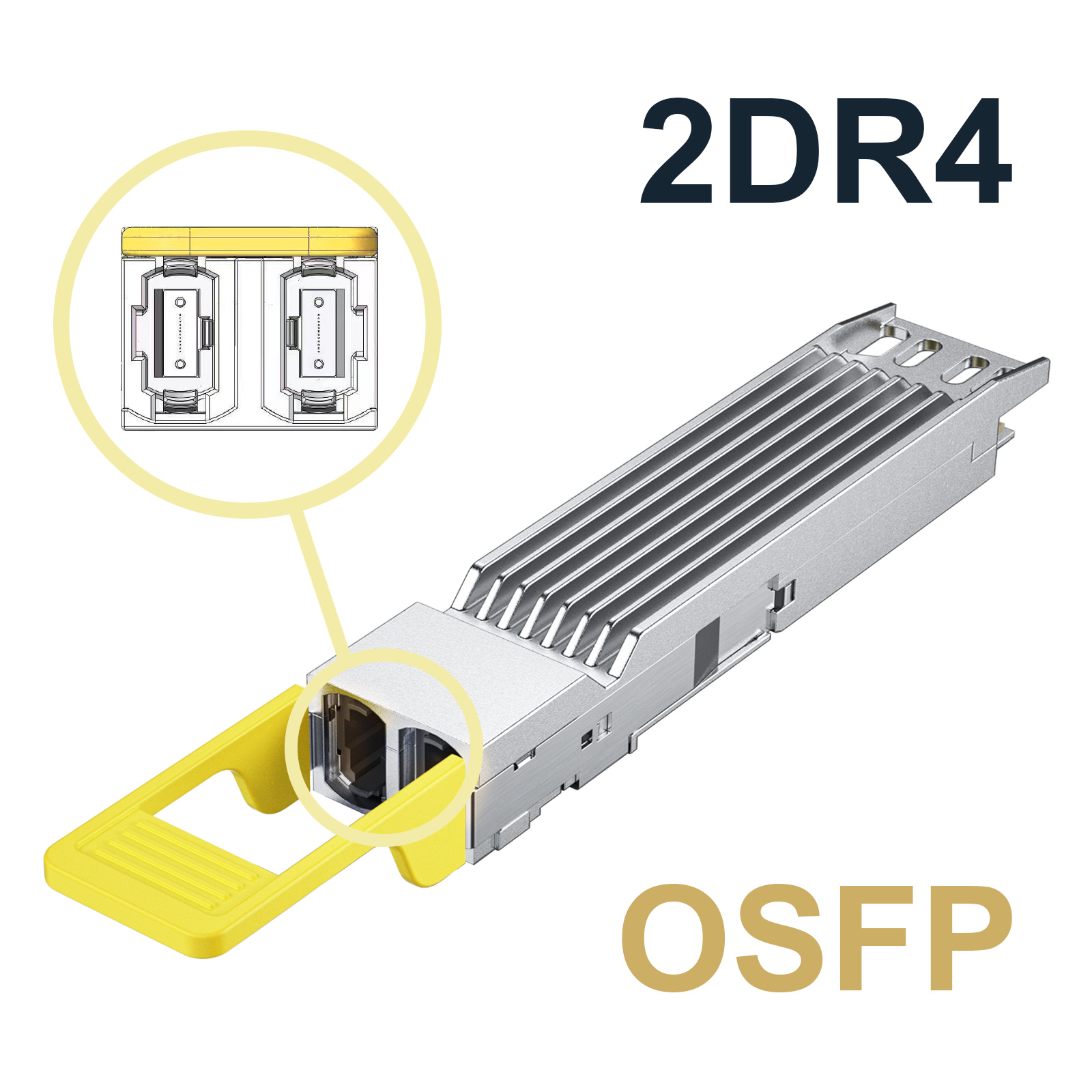

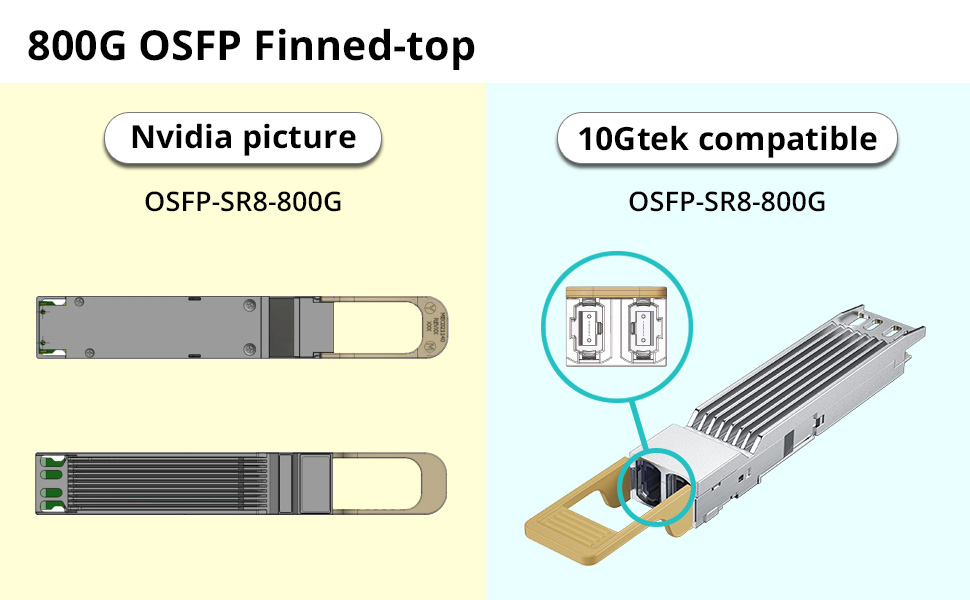

OSFP 800G Finned-top, Twin-port OSFP 2x400Gb 2x DR4 single mode transceiver, up to 500m @ SMF MPO-12/APC

10Gtek’s OSFP transceiver module is designed for use in 800 Gigabit Ethernet links over 500m single mode fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel. This transceiver consists of two transmitter/receiver units, with each operating on a set of wavelengths on the ITU G.694.2 CWDM at 1310nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with EML laser and 8-channel internal driver. On the receiver path, used 8 photodiodes and integrated TIA, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 800GAUI-8 interface as defined by IEEE 802.3ck, and compliant with OSFP MSA.

● Used in Quantum-2 or Spectrum-4 air-cooled switches, and DGX-H100 systems to switches, ConnectX-7, and BlueField-3 DPUs

● 8-channels of 100G-PAM4 electrical modulation;
   Two MPO-12/APC optical ports of 4-channel 100G-PAM4 optical modulation;

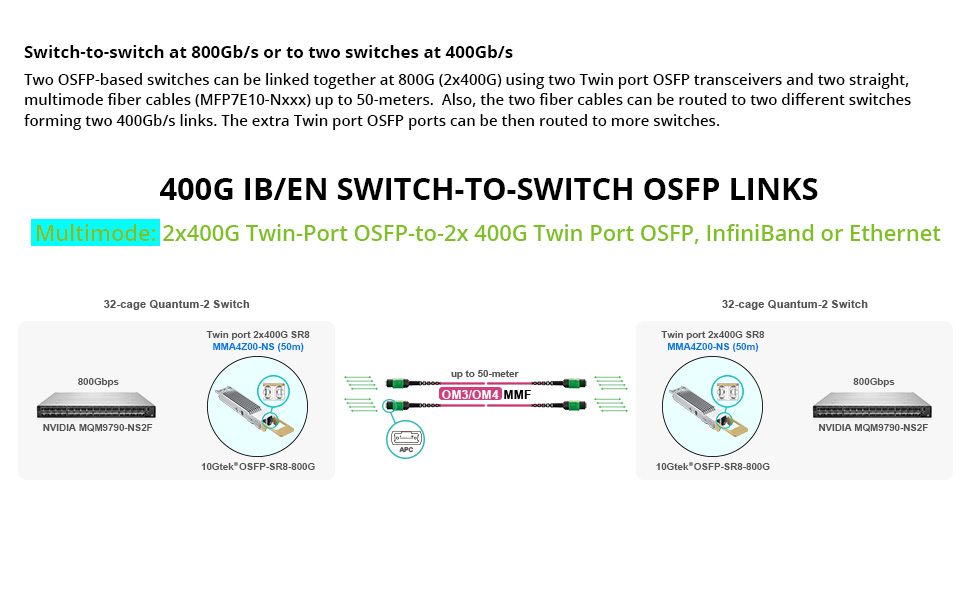

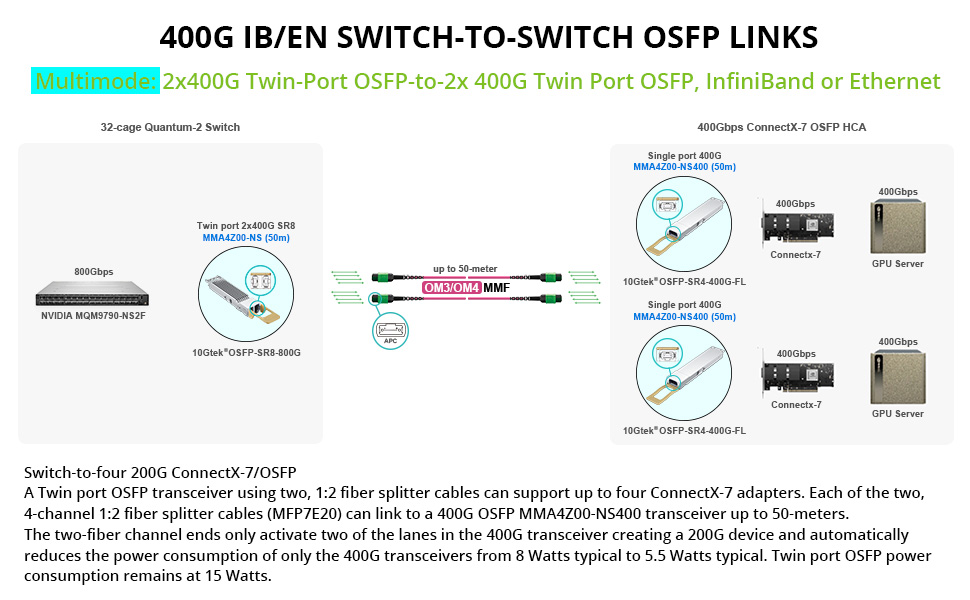

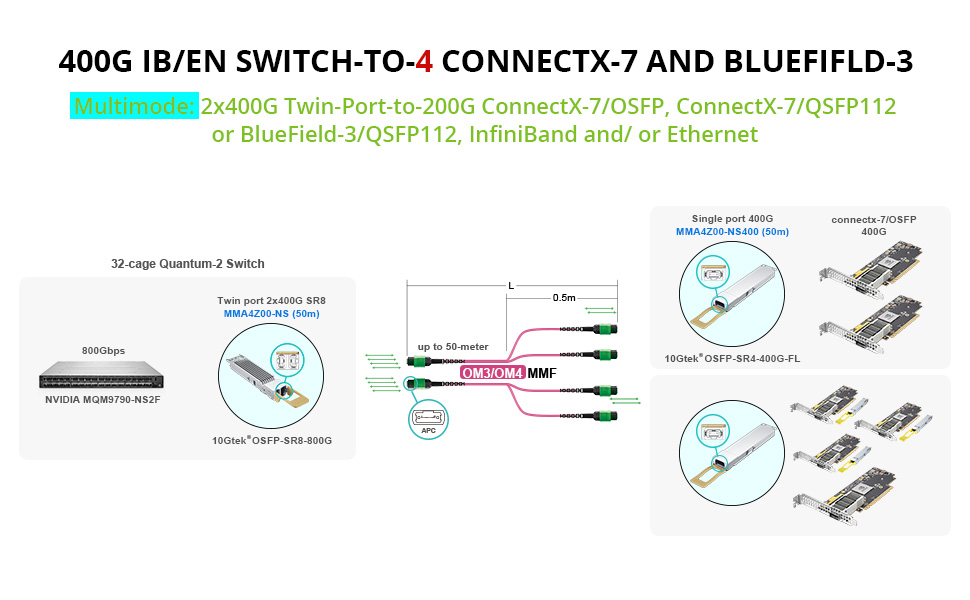

   Supports two straight 400Gb/s or two 1:2 splitter fiber cables for 200Gb/s transceivers

● 17 Watts max power & 2.0 Watt low-power sleep mode;
   Single 3.3V power supply

● OSFPmsa.org compliant;
   IEEE 802.3ck; CMIS 4.0 compliant;
   Class 1 laser safety compliant;
   Case temperature range 0°C to +70°C

Features

● Supports 850Gbps

● Single 3.3V Power Supply

● Up to 500m over SMF with KP4 FEC

● supported at the Host side

● Dual MPO-12 connector

● 8x106.25Gbps (PAM4) electrical interface

● Driver and TIA integrated in the DSP at transmitter and receiver side

● Power dissipation < 14.5W

● Case temperature range: 0°C to 70°C (commercial)

● RoHS Compliant

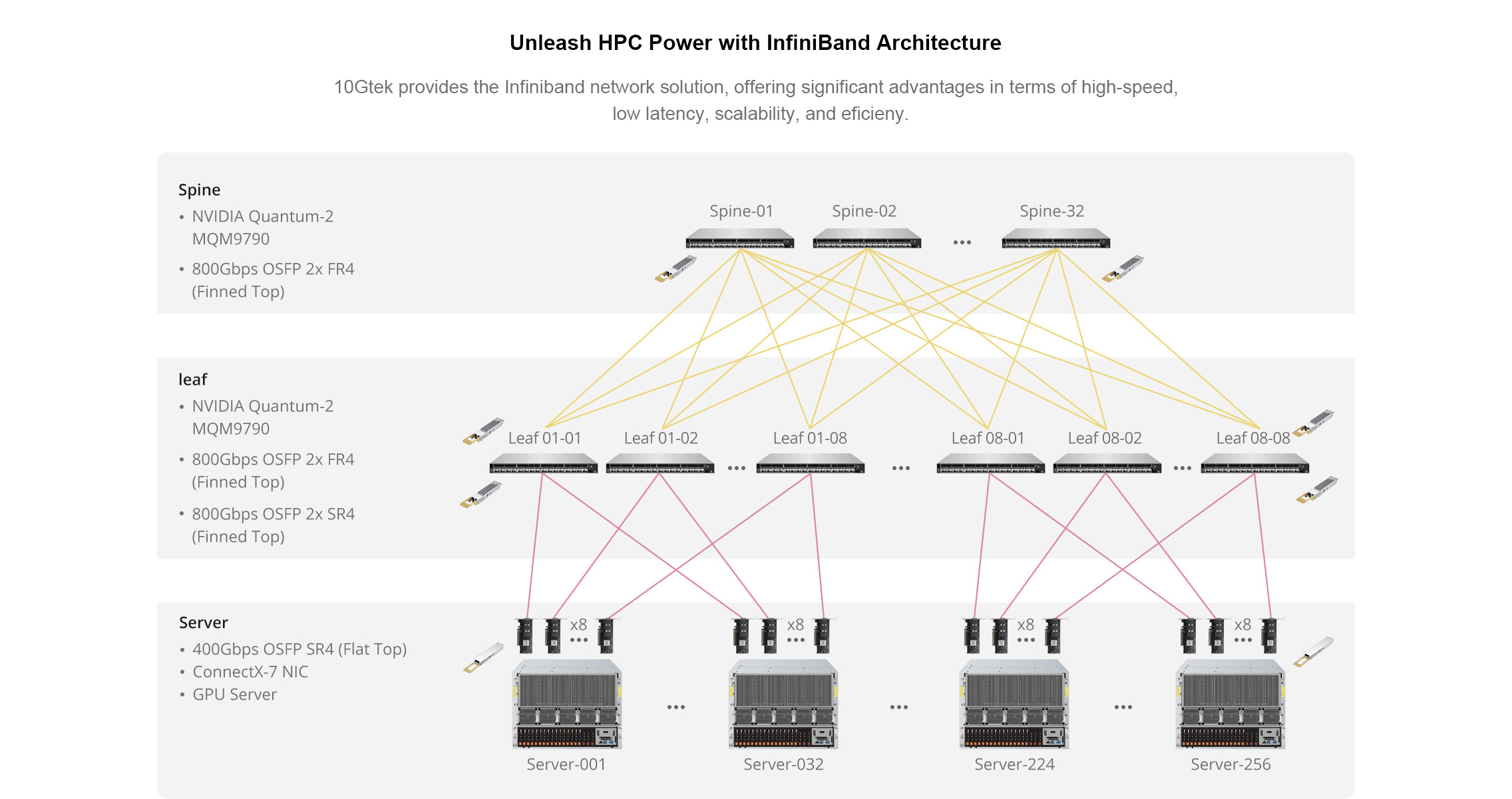

Applications

● 8x100G Ethernet and InfiniBand

● 2x400G Ethernet and InfiniBand

● 1x800G Ethernet and InfiniBand
