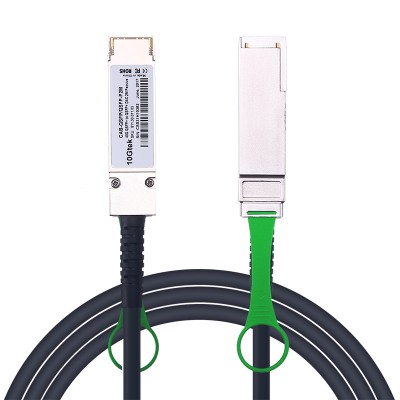

QSFP+ DAC based on IEEE 802.3ba and compliant MSA SFF-8436, application in 40G Ethernet, infiniband QDR and Omni-path, suitable for very short distances transmission and offer a highly cost-effective solution to establish a 40-Gigabit link between QSFP+ ports and QSFP+ switches within racks and across adjacent racks.
For I2C, there are 2 designs with MCU or with EEPROM, MCU design is for "HPE (H3C)" and some model of "Cisco Switch", the EEprom design is for many brands device.
Notice:
- QSFP+ DAC, QSFP28 DAC, we did not offer the items to support "Aruba".
Features:
- 40GBase-CR4
- Length: 0.5~5 meters
- 8-pair differential twinax Cable
- Passive
- EEPROM I2C (MCU for Cisco or HPE compatible)
- 30/28/26AWG
- Low power consumption
- Excellent EMI performance
- Temp. Range(℃): 0~70
Applications:
- Ethernet 10G, 40G
- InfiniBand 4X SDR, DDR, QDR
- Fiber Channel 10G, 40G
- Rapid IO
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- TOR (Top of Rack)
More Information
| Custom SKU | CAB-Q10/Q10-P | Model | CAB-Q10/Q10-P |
|---|---|---|---|
| Spec. AWG | 30/28/26 | MSA | 40GBase-CR4 |
| Rate | 40G | Max Data Rate | 40Gb/s |
| Interface | QSFP+ to QSFP+ | Spec. P/A | Passive |
| Spec. E/M | MCU or EEPROM | Brand | 10Gtek |
