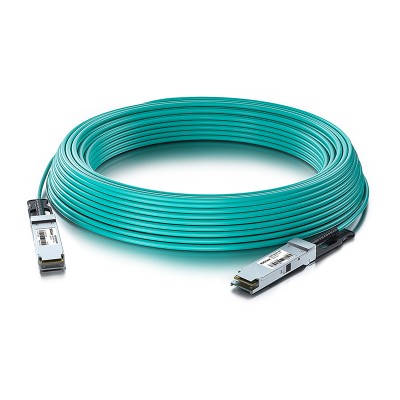

10Gtek's QSFP+ Active Optical Cable (AOC) is a high performance, low power consumption integrated cable for short-range multi-lane data communication and interconnect applications, supporting 40G Ethernet, fiber channel.
It is compliant with the QSFP+ MSA and IEEE P802.3ba 40GBASE-SR4. It integrates four data lanes in each direction with 40 Gb/s aggregate bandwidth.
Features:
- 40GBase-AOC
- 4 independent full-duplex channels
- Up to 12.5Gbps data rate per channel
- QSFP MSA compliant
- Up to 100m transmission over OM3 MMF
- Operating case temperature: 0ºC~70ºC
- Single 3.3V power supply
- Typical 0.8W operation power each terminal
- RoHS compliant
- Infiniband SDR/DDR/QDR
- 2/4/8G Fiber Channel
Applications:
- 10/40G Ethernet
More Information
Custom SKU | AOC-Q1Q1 | CPN | AOC-Q1Q1 |
---|---|---|---|
Model | AOC-Q1Q1 | MSA | 40GBase-AOC |
Rate | 40G | Max Data Rate | 40Gbps |
Interface | QSFP+ to QSFP+ | Spec. P/A | Active |
Spec. E/M | EEPROM | Brand | 10Gtek |
