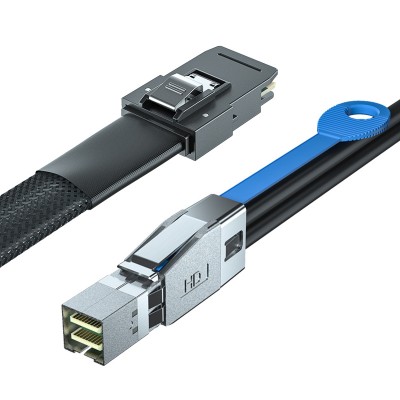

SFF-8644 to SFF-8087 Hybrid SAS Cable 0.5~1 Meter

Mini Serial Attached SCSI (miniSAS) Internal Cable Assemblies provide for high speed transmission up to 6 Gbps.
It is an ideal interconnect solution for the growing server and storage market. MiniSAS are designed to signifi cantly reduce the cable size for storage systems currently using SAS 4-lane (4x or 4-lanes of data) and are being widely adopted for next-generation designs.
The 36-position internal miniSAS cable assemblies are available in custom lengths of up to one meter.
They are also available in three standard sideband confi gurations. Customized sideband confi gurations are available upon request.

Features

• MiniSAS SFF-8087 to Mini SAS HD (SFF-8644)
• Cable Length: 0.5~1 meter
• Connector on First End: 1 x 36-pin SFF-8087
• Connector on Second: Mini SAS HD (SFF-8644)
• Support data rates at 6.0 Gbps
• Internal 36 pin miniSAS interconnect between controllers, expanders, backplanes and internal-to-external adapters.

Applications

• Data Center
• Servers
• Workstations and desktops
