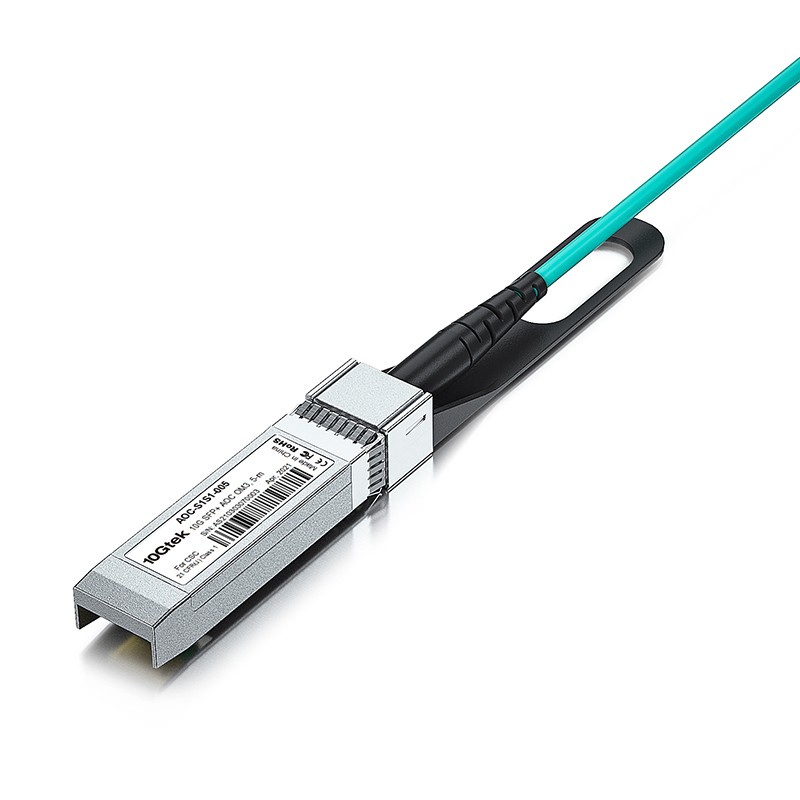

SFP+ AOC (Active Optical Cable) consists of 2x SFP+ modules and a fiber cable assembly, transmitting up to 10Gbps in each direction over a OM3 MMF with distance up to 100m.
SFP+ AOC can be used as an alternative solution to SFP+ DAC (or SFP+ transceiver), while providing improved signal integrity, longer distances, superior electromagnetic immunity and better bit error rate performance.
Features:
- 10Gb/s serial optical interface
- 850nm high-speed VCSEL and PIN receiver
- Support 10Gb/s transmission distance up to 100 meters with MMF
- Operating case temperature 0ºC to +70ºC
- Single 3.3V power supply
- Mechanical specifications compliant with SFF-8432
- Electrical specifications compliant with SFF-8431
- Support digital diagnostics monitoring for module temperature, Vcc, Rx input power, Tx_Disable and Rx_LOS
- Typical power consumption 200mW
- I2C communication bus
- Hot pluggable
- RoHS-6 compliance
Applications:
- 10G Ethernet
- Datacom and Telecom switch or router backplane connection
- High performance computing interconnect
More Information
| Custom SKU | AOC-S1S1 | CPN | AOC-S1S1 |
|---|---|---|---|
| Model | AOC-S1S1 | Compatible | Brocade |
| MSA | 10GBase-AOC | Rate | 10G |
| Max Data Rate | 10Gbps | Interface | SFP+ to SFP+ |
| Spec. P/A | Active | Spec. E/M | EEPROM |
| Brand | 10Gtek |
