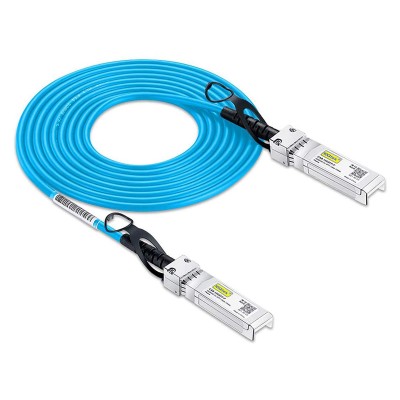

3m(10ft) 10G SFP+ to SFP+ Twinax Copper Passive DAC Cable Cisco Compatible(Blue)

Colored SFP+ DAC cables are available NOW!
SFP+ DAC (Direct Attach Copper) passive twinax cable is suitable for very short distances transmission and offers a highly cost-effective and low power solution to connect within racks and across adjacent racks.
SFP+ twinax passive cable allows for a serial data transmission up to 10.3Gb/s, which is a low cost choice for very short reach applications of 10GbE or 1-8G Fiber Channel.
SFP+ DAC which replaces two optical modules and a connectorized optical fiber with a twinaxial copper cable assembly offers the higher density, lower cost, and lower power 10 Gigabit Ethernet solution than other cable types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. AWG(American wire gauge), decreasing gauge numbers denote Increasing wire diameters, the transmission will be more longer, 30AWG for 0.5~3 meters application, the price is better than 24AWG Cable.

Notice:

• When link "Intel NIC" with over 3 meters SFP+ DAC Passive, you need to choose 24AWG, otherwise there will exist instability (1 or 2 meters, 30AWG is ok).
• When link "Cisco switch" with 5 meters SFP+ DAC Passive, you could also choose 30AWG to save cost (because Cisco has enough compensation in the switch’s chipset ).
• When link "Aruba (HP Provurve) switch"，the hardware is different with others.
• The compatible for "Brocade CNA", please choice the Active SFP+ DAC.

Features:

• 10GBase-CU
• SFP+ to SFP+ Connetor
• AWG30
• Length: 0.5~3 meters
• 2-pair differential twinax cable
• Impedance: 100-ohm
• EEPROM I2C (MCU: customized)
• Compliant to SFP MSA
• Low power consumption
• Excellent EMI performance
• RoHS Compliant
• Temp. Range(℃): 0~70 (Industrial Temp.: customized)

Applications:

• 1-8G Fiber Channel
• 1-10G Gigabit Ethernet
• Networking, Storage, Telecommunications
• Hub, Switches, Routers, Servers, Network Interface Card(NICs)
