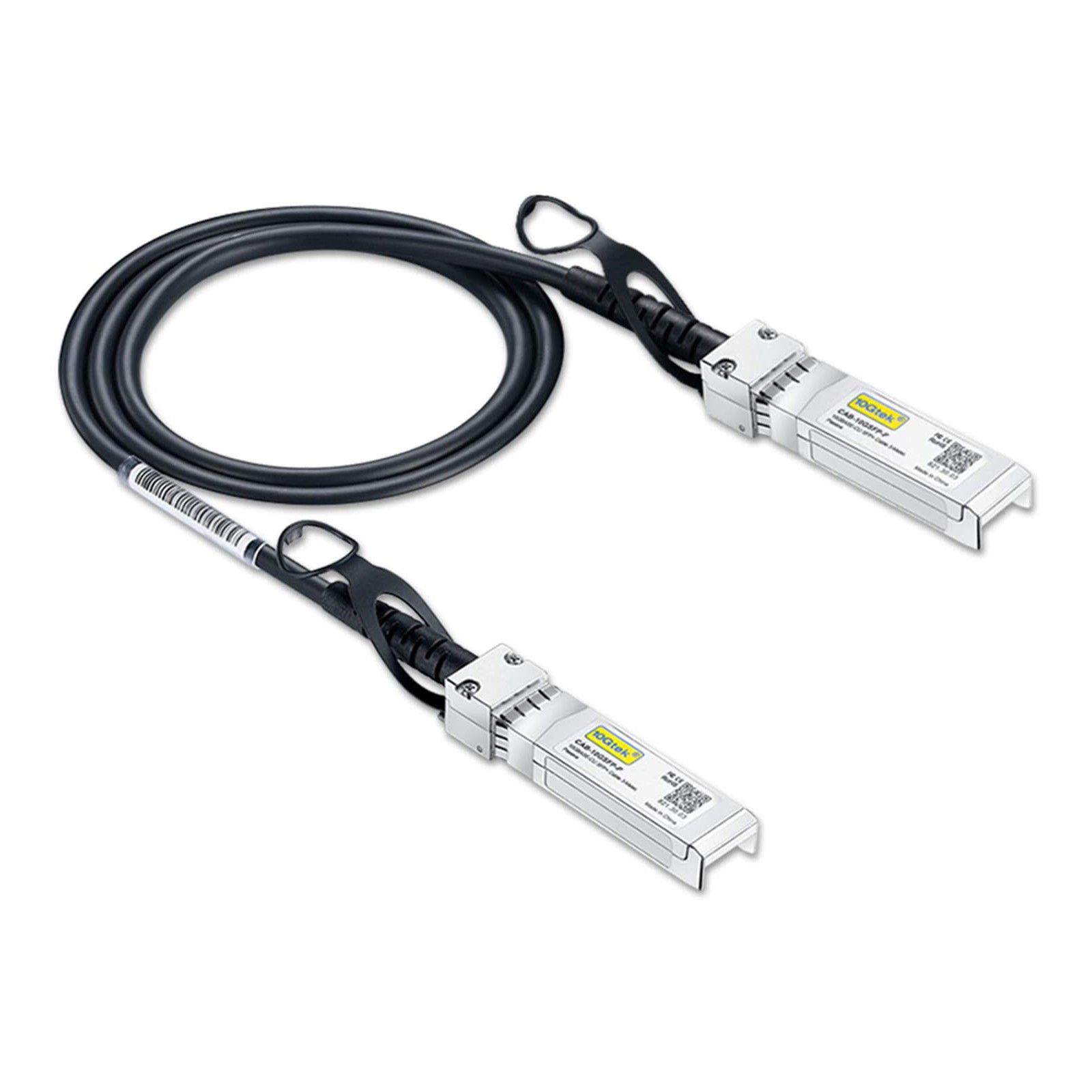

SFP+ DAC (Direct Attach Copper) passive twinax cable is suitable for very short distances transmission and offers a highly cost-effective and low power solution to connect within racks and across adjacent racks.
SFP+ twinax passive cable allows for a serial data transmission up to 10.3Gb/s, which is a low cost choice for very short reach applications of 10GbE or 1-8G Fiber Channel.
SFP+ DAC which replaces two optical modules and a connectorized optical fiber with a twinaxial copper cable assembly offers the higher density, lower cost, and lower power 10 Gigabit Ethernet solution than other cable types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T.
AWG(American wire gauge), decreasing gauge numbers denote Increasing wire diameters, the transmission will be more longer, 24AWG for 3~7 meters application.
Notice:
- When link "Intel NIC" with over 3 meters SFP+ DAC Passive, you need to choose 24AWG, otherwise there will exist instability (1 or 2 meters, 30AWG is ok).
- When link "Cisco switch" with 5 meters SFP+ DAC Passive, you could also choose 30AWG to save cost (because Cisco has enough compensation in the switch’s chipset ).
- When link "Aruba (HP Provurve) switch",the hardware is different with others.
- The compatible for "Brocade CNA", please choice the Active SFP+ DAC.
Features:
- 10GBase-CU
- SFP+ to SFP+ Connetor
- 2-pair differential twinax cable
- Impedance: 100-ohm
- EEPROM I2C (MCU: customized)
- Compliant to SFP MSA
- Low power consumption
- Excellent EMI performance
- RoHS Compliant
- Temp. Range(℃): 0~70 (Industrial Temp.: customized)
Applications:
- 1-8G Fiber Channel
- 1-10G Gigabit Ethernet
- Networking, Storage, Telecommunications
- Hub, Switches, Routers, Servers, Network Interface Card(NICs)
More Information
Custom SKU | CAB-10GSFP-P-26 | CPN | CAB-10GSFP-P5M-26 |
---|---|---|---|
Model | CAB-10GSFP-P-24 | Compatible | Arista |
Compatible Model | CAB-SFP-SFP-5M | Spec. AWG | 26 |
MSA | 10GBase-CU | Rate | 10G |
Max Data Rate | 10Gbps | Interface | SFP+ to SFP+ |
Spec. P/A | Passive | Spec. E/M | EEPROM |
Spec. Impedance | 100 ohm | Brand | 10Gtek |
