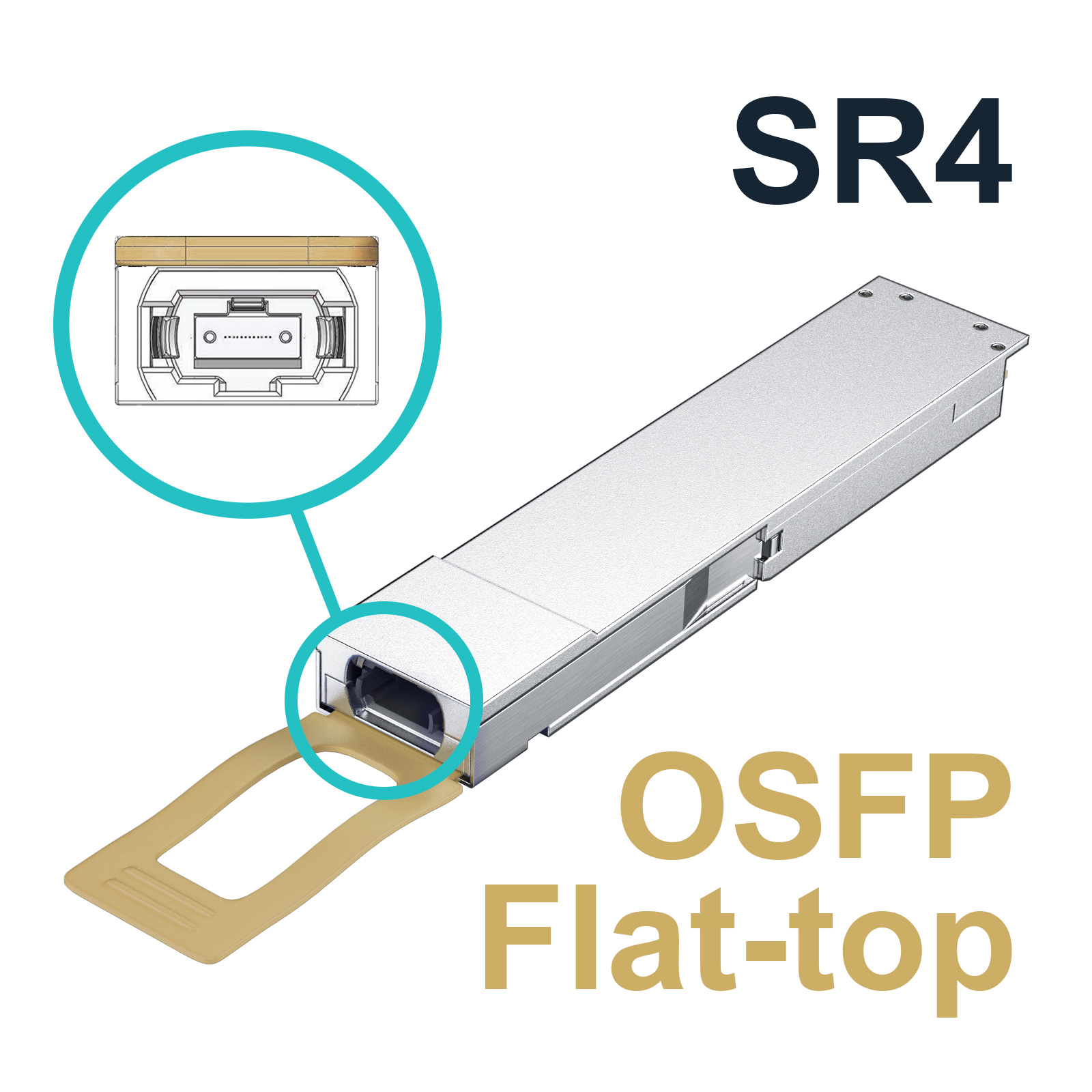

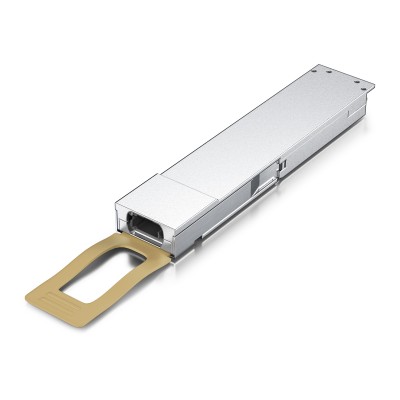

The OSFP-400G-SR4 is an Infiniband (IB) module operating at a data rate of 400 Gb/s, featuring a single-port configuration and an OSFP-RHS form factor. It is specifically designed as an SR4 multi-mode optical module, employing a single 4-channel MPO-12/APC fiber optic connector. This module is intended for use in 400G OSFP-RHS port network interface cards (NICs) and facilitates interconnection with a variety of devices. Specifically, it allows for interoperability with 800G 2xSR4 modules on OSFP port switches or 400G SR4 modules on QSFP-DD port switches, catering to diverse interconnect scenarios between different equipment.
Features
● Hot-pluggable OSFP form factor
● Maximum link length of 50m on OM4 fiber with FEC
● +3.3V single power supply
● Power dissipation < 9W
● Operating case temp Commercial: 0°C to +70 °C
● MPO- 12 APC connector
● RoHS compliant
Applications
● 400GBASE-SR4 per IEEE 802.3db
● 400GAUI-4
More Information
| CPN | OSFPSR4X100-RHS | Custom SKU | OSFPSR4X100-RHS |
|---|---|---|---|
| Model | OSFPSR4X100-RHS | Compatible | Mellanox InfiniBand |
| Compatible Model | MMA4Z00-NS400 | Reach | 30m |
| Reach1 | 30m@OM3 or 50m@OM4 | Wavelength | 850nm |
| Interface | MPO/MTP | Fiber Cable | MMF |
| Compatible | 10Gtek offer Compatible Service | Temp. | 0 to 70°C (32 to 158°F) |
| Form Type | OSFP | Max Data Rate | 400Gbps |
| Brand | 10Gtek |
