Application:

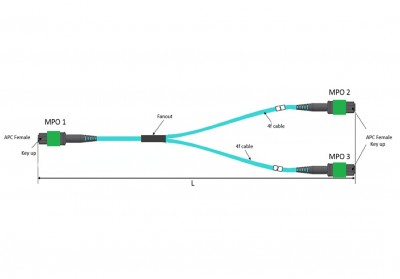

MPO1: Nvidia MMA4Z00-NS or 10Gtek OSFPSR8X100
MPO2 and MPO3: two MMA4Z00-NS400 or two 10Gtek OSFPSR4X100-RHS
Qty (1) MPO fiber cable is needed for this application, the whole link is 400G.
More Information
| Custom SKU | MFP7E20-N00X | Polarity Options | TypeB |
|---|---|---|---|
| Interface | MPO to MPO, 12-core | Spec. POLARITY | POLARITY - B |
| Spec. Cable Jack | LSZH | Spec. Polish | APC |
| Cable OD | 3.0 mm | Brand | 10Gtek |
| Temp. | 0 to 70°C (32 to 158°F) | Insertion Loss | ≤ 0.7dB |
| Return Loss | ≥ 55dB | Connector Type | MPO-MPO |
