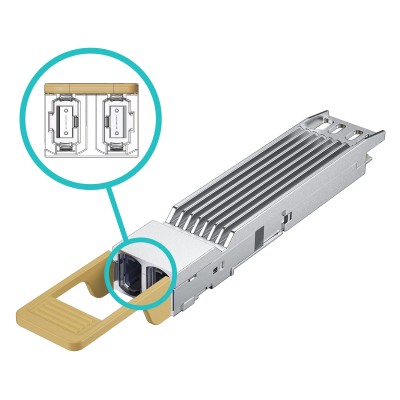

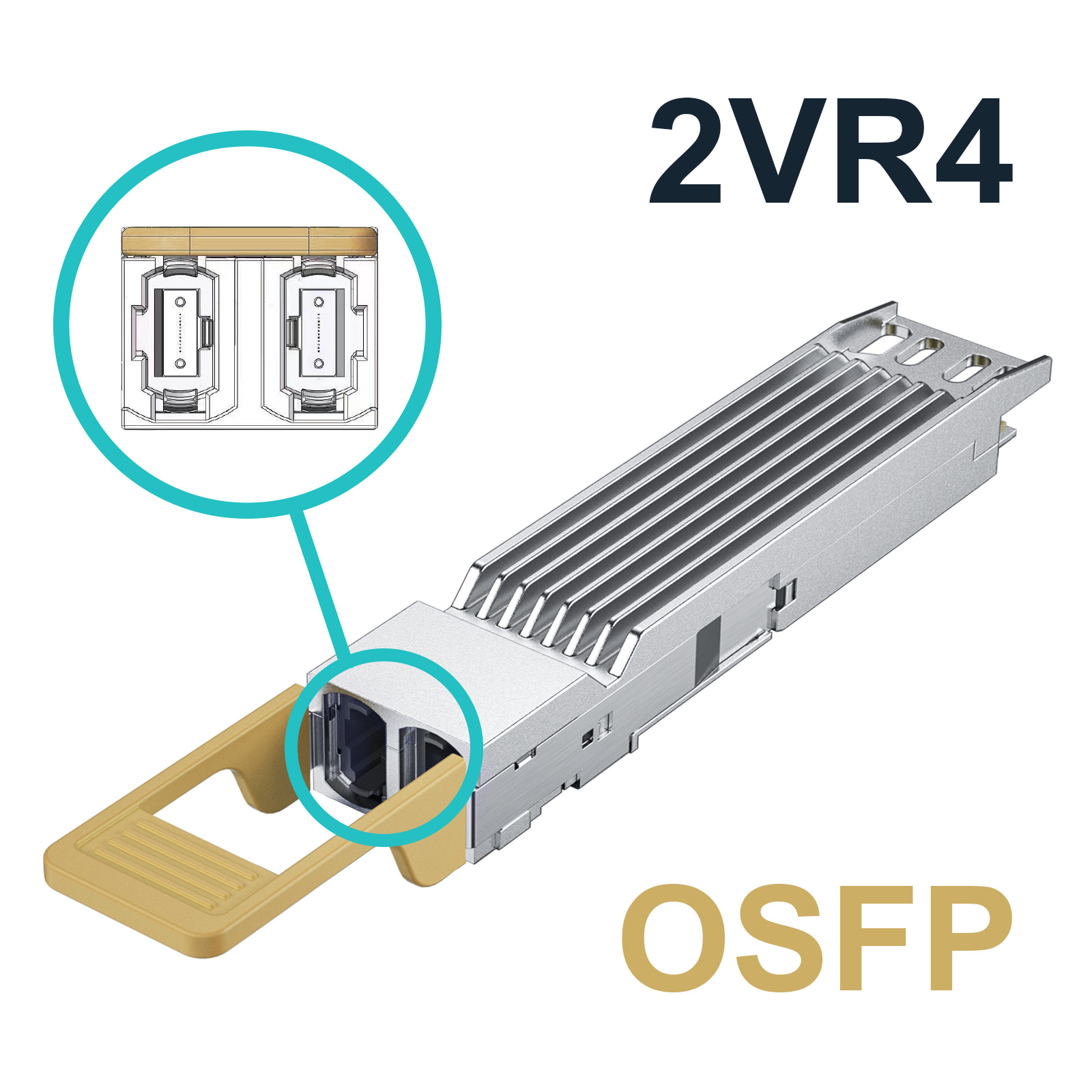

OSFP Compatible Module, 800GBase-SR8 800G OSFP 850nm 30m@OM3 or 50m@OM4 MMF Transceiver Module

10Gtek’s OSFP 2x400G transceiver module is designed for use in 2x400 Gigabit Ethernet links over 30m OM3 or 50m OM4 fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel. This transceiver consists of two transmitter/receiver units, with each operating on 850nm wavelength. The transmitter path of the module incorporates a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. On the receiver path, it consists of 8 photodiodes and two 4-channel TIAs, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 400GAUI-4 interface as defined by IEEE 802.3ck, and compliant with OSFP MSA.

Features

• Supports 850Gbps
• Single 3.3V Power Supply
• Power dissipation < 14W
• 125GBd (PAM4) Electrical Interface
• Dual MPO-12 Connector APC
• Case Temperature Range: 0°C to 70°C
• VCSEL Transmitter
• PIN and TIA Array on the Receiver Side
• I2C Interface with Integrated Digital Diagnostic Monitoring
• Safety Certification: TUV/UL/FDA*1
• RoHS Compliant
• OSFP MSA Compliant

Applications

• 2x200GbE
• 8x100GbE
