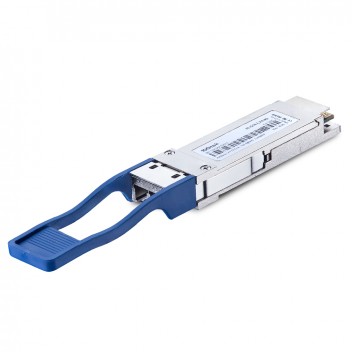

40GBase-LX4 40G QSFP+ 4 CWDM DOM 150m@OM3 Dual LC SMF or MMF Transceiver, Allied telesis Compatible Module

QSFP+ LX4 is a transceiver module designed for optical transmission applications over both MMF and SMF with transmission distances of up to 150m on MMF (OM3) and 2km on SMF.
The module converts 4 inputs channels (CH) of 10Gbps electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gbps optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gbps input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.

Features:

• 40GBase-LX4
• Data Rate: 40G，QDR
• Ratch1: up to 150 meters OM3 MMF
• Ratch2: up to 2 km SMF
• Wavelength: 1271, 1291, 1311, 1331 nm
• Interface: Daul LC Connectors
• Fiber Type: SMF
• Power Consumption: <3.5W
• Excellent EMI performance
• Temp. Range(℃): 0~70

Applications:

• Ethernet 10G, 40G
• InfiniBand 4X SDR, DDR, QDR
• Fiber Channel 10G, 40G
• Rapid IO
• Rack-to-Rack, Shelf-to-Shelf Interconnect
