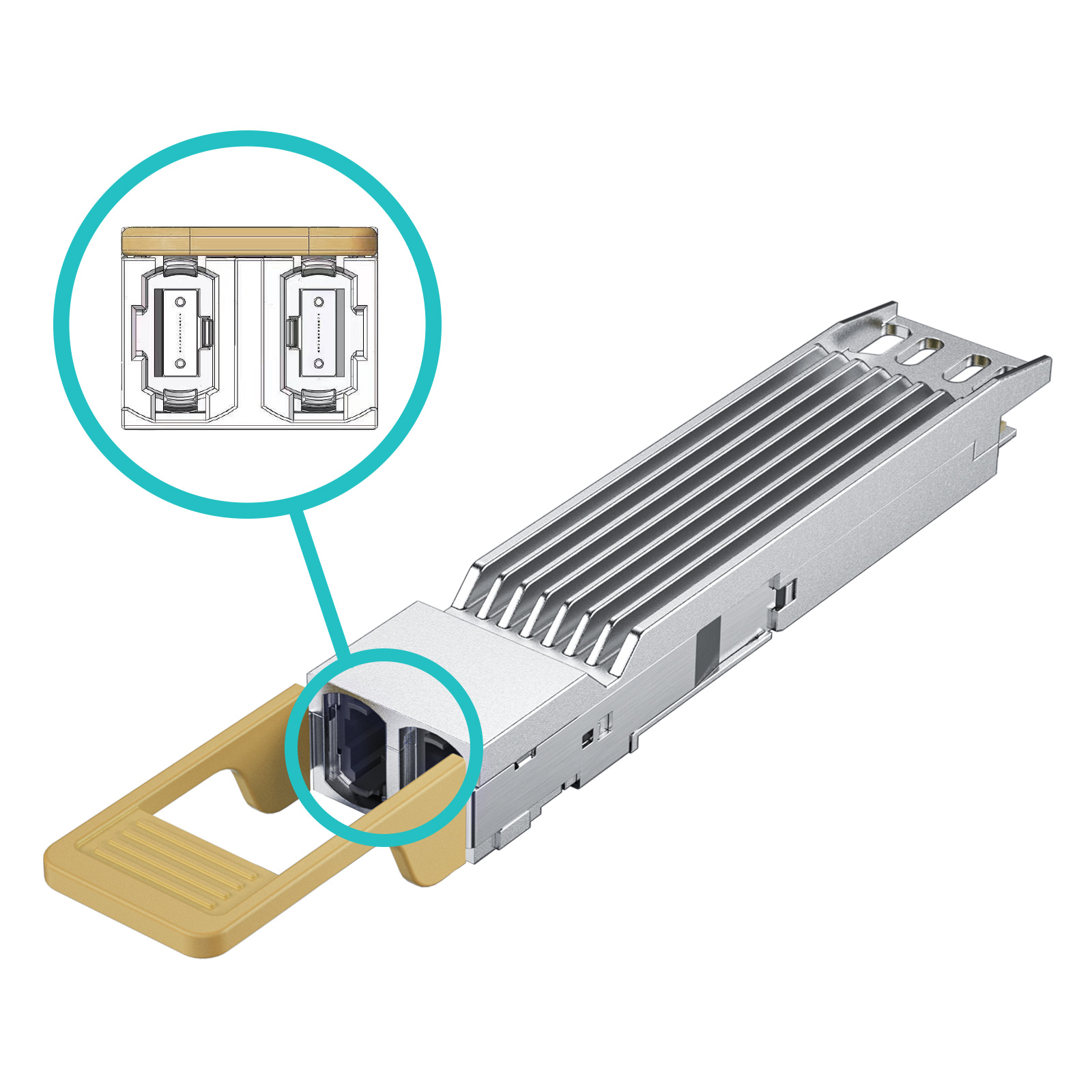

    800Gb/s Twin-port NDR OSFP SR8 850nm Dual MPO-12/APC, up to 50m for OEM code
    Loading...

    800Gb/s Twin-port NDR OSFP SR8 850nm Dual MPO-12/APC, up to 50m for OEM code

    #21208
    SKU:OSFPSR8X100
    0 Question(s)
    $990.00

    Maximum 120 characters

    ● Data Rate: 800Gb/s, 2x 400Gb/s
    ● Wavelength: 850-nm
    ● Reach: 30m OM3 or 50m OM4
    ● Interface: Dual MPO-12/APC Connector
    ● Power Consumption: <16W

    10Gtek’s OSFP 2x400G transceiver module is designed for use in 2x400 Gigabit Ethernet links over 30m OM3 or 50m OM4 fiber. The module has 8 independent electrical input/output channels operating up to 106.25Gbps per channel. This transceiver consists of two transmitter/receiver units, with each operating on 850nm wavelength. The transmitter path of the module incorporates a PAM4 re-timer ASIC with two 4-channel modulator drivers and 8 modulated lasers. On the receiver path, it consists of 8 photodiodes and two 4-channel TIAs, along with the PAM4 re-timer. The electrical interface of the module is compliant with the 400GAUI-4 interface as defined by IEEE 802.3ck, and compliant with OSFP MSA.

    Features

    • Supports 850Gbps
    • Single 3.3V Power Supply
    • Power dissipation < 16W
    • 125GBd (PAM4) Electrical Interface
    • Dual MPO-12 Connector APC
    • Case Temperature Range: 0°C to 70°C
    • VCSEL Transmitter
    • PIN and TIA Array on the Receiver Side
    • I2C Interface with Integrated Digital Diagnostic Monitoring
    • Safety Certification: TUV/UL/FDA*1
    • RoHS Compliant
    • OSFP MSA Compliant

    Applications

    • 2x200GbE
    • 8x100GbE

    More Information

    CPNOSFPSR8X100 Custom SKUOSFPSR8X100
    ModelOSFPSR8X100 CompatibleOEM code
    MSA800GBase-SR8 Rate800G
    Reach30m Reach130m@OM3 or 50m@OM4
    Wavelength850nm Fiber CableMMF
    Compatible10Gtek offer Compatible Service Temp.0 to 70°C (32 to 158°F)
    Form TypeOSFP Max Data Rate800Gbps
    Brand10Gtek
