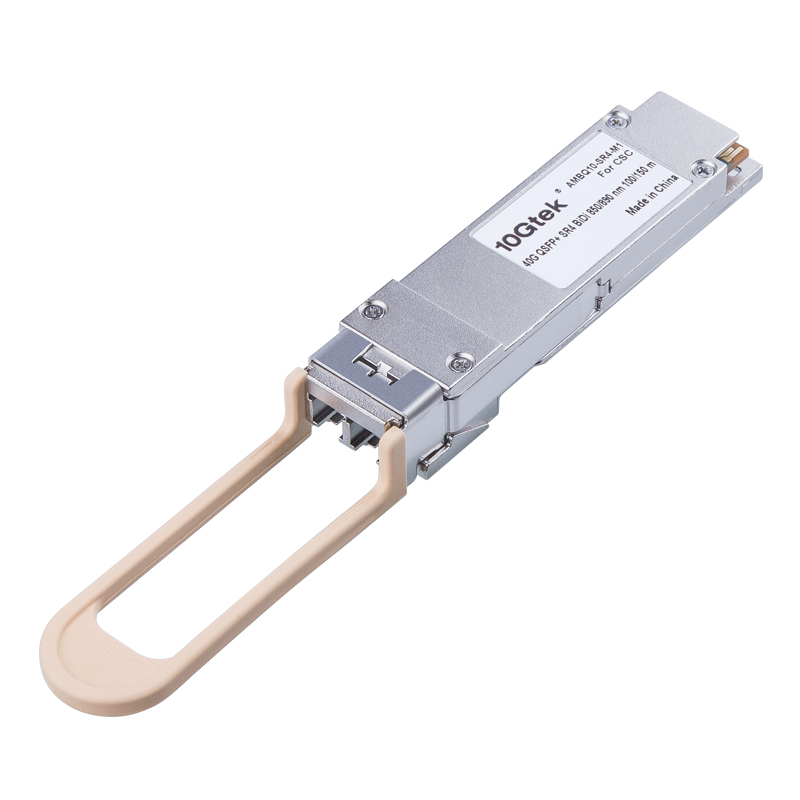

40GBase-SR4-BiDi 40G QSFP+ 850~890nm DOM 100m@OM3 150m@OM4 Dual LC MMF Transceiver, Dell (Force10) Compatible Module

40Gbps QSFP BiDi transceiver reduces overall costs and installation time for customers migrating data center aggregation links to 40Gbps connections.
This QSFP BiDi transceiver has two 20Gbps channels, each transmitted and received simultaneously over two wavelengths on a single MMF strand.
The result is an aggregated duplex 40Gbps link over a MMF duplex LC fiber cable.
The connection can reach 100 meters on OM3 MMF or 150 meters on OM4 MMF, which is the same as 40Gbps SR4.
It provides the capability to reuse 10Gbps fiber infrastructure. In other words, it enables data center operators to upgrade to 40Gbps connectivity without making any changes to the previous 10Gbps fiber cable plant.
10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.

Features:

• 40GBase-SR4-BiDi
• Data Rate: 40G, QDR
• Wavelength: 850~890-nm
• Interface: Daul LC Connectors
• Ratch1: up to 100 meters @ OM3 MMF
• Ratch2: up to 150 meters @ OM4 MMF
• Fiber Type: OM3/OM4 MMF
• Power Consumption: <1.5W
• Excellent EMI performance
• Temp. Range(℃): 0~70

Applications:

• Ethernet 10G, 40G
