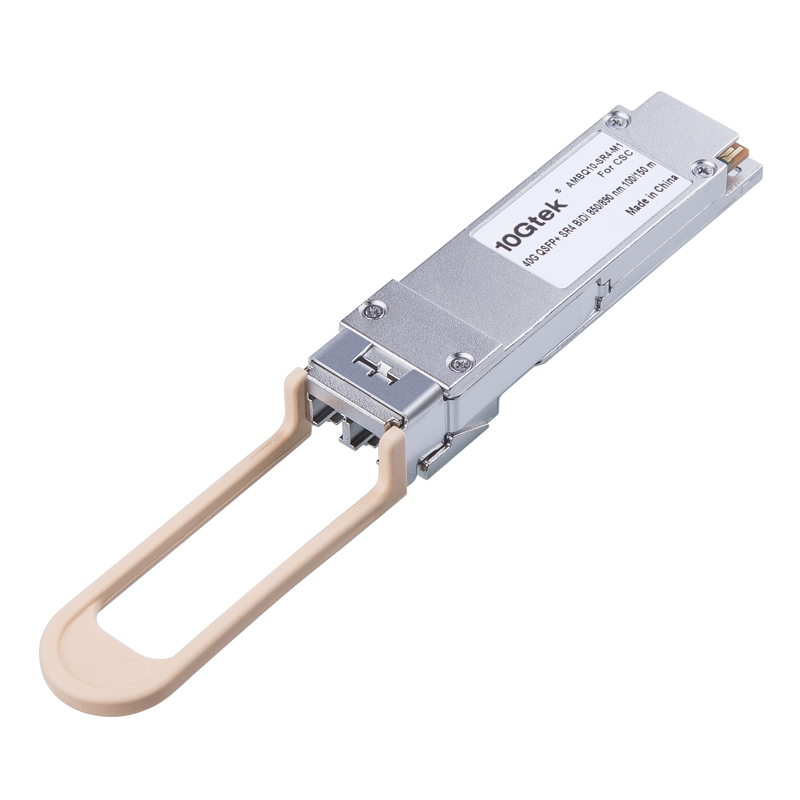

    40GBase-SR4-BiDi 40G QSFP+ 850~890nm DOM 100m@OM3 150m@OM4 Dual LC MMF Transceiver, Extreme Compatible Module
    Loading...

    40GBase-SR4-BiDi 40G QSFP+ 850~890nm DOM 100m@OM3 150m@OM4 Dual LC MMF Transceiver, Extreme Compatible Module

    #6208
    SKU:QSFP-40G-SR-BD
    0 Question(s)
    As low as $259.00

    Maximum 120 characters

    ● 40GBase-SR4-BiDi
    ● Data Rate: 40G, QDR
    ● Wavelength: 850~890-nm
    ●Reach1: up to 100 meters @ OM3 MMF
    ●Reach2: up to 150 meters @ OM4 MMF
    ● Fiber Type: OM3/OM4 MMF
    ● Interface: Dual LC connectors

    ● 10Gtek offer Compatible Service

    40Gbps QSFP BiDi transceiver reduces overall costs and installation time for customers migrating data center aggregation links to 40Gbps connections.
    This QSFP BiDi transceiver has two 20Gbps channels, each transmitted and received simultaneously over two wavelengths on a single MMF strand.
    The result is an aggregated duplex 40Gbps link over a MMF duplex LC fiber cable.
    The connection can reach 100 meters on OM3 MMF or 150 meters on OM4 MMF, which is the same as 40Gbps SR4.
    It provides the capability to reuse 10Gbps fiber infrastructure. In other words, it enables data center operators to upgrade to 40Gbps connectivity without making any changes to the previous 10Gbps fiber cable plant.
    10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.

    Features:

    • 40GBase-SR4-BiDi
    • Data Rate: 40G, QDR
    • Wavelength: 850~890-nm
    • Interface: Daul LC Connectors
    • Ratch1: up to 100 meters @ OM3 MMF
    • Ratch2: up to 150 meters @ OM4 MMF
    • Fiber Type: OM3/OM4 MMF
    • Power Consumption: <1.5W
    • Excellent EMI performance
    • Temp. Range(℃): 0~70

    Applications:

    • Ethernet 10G, 40G

    More Information

    CPNQSFP-40G-SR-BD Custom SKUQSFP-40G-SR-BD
    ModelQSFP-40G-SR-BD CompatibleExtreme
    MSA40GBase-SR4-BiDi Rate40G
    Reach100m@OM3 Reach1150m@OM4
    Wavelength850~890nm InterfaceDual LC
    Fiber CableMMF Compatible10Gtek offer Compatible Service
    Temp.0 to 70°C (32 to 158°F) Form TypeQSFP+
    DOM SupportYes Max Data Rate44.8Gbps
    Brand10Gtek
